| Processor | Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores | ||
| Memory |
16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s Supports registered ECC DDR4 DIMMs only
|
||
| Storage controllers |
Internal controllers: PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150 Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB External PERC (RAID): PERC H840, HBA355e
|
||
| Drive Bays | Front bays:
0 drive bay Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB
Rear bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
|
||
| Power Supplies |
600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant 800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant 1100W Titanium Mixed Mode (100-240Vac or 240Vdc) hot swap redundant 1400W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
1100W -48Vdc hot swap redundant (CAUTION: only works with -48Vdc to -60Vdc power input)
|
||
| Cooling options | Air cooling | ||
| Fans |
Standard fans/High performance Silver fans/High performance Gold fans Up to six hot swap fans
|
||
| Dimensions |
Height – 86.8 mm (3.41 inches) Width – 482.0 mm (18.97 inches) Depth – 707.78 mm (27.85 inches) – without bezel
721.62 mm (28.4 inches) – with bezel |
||
| Form Factor | 2U rack server | ||
| Embedded Management |
iDRAC9 iDRAC Service Module iDRAC Direct Quick Sync 2 wireless module
|
||
| Bezel | Optional LCD bezel or security bezel | ||
| OpenManage Software |
OpenManage Enterprise OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin
|
||
| Mobility | OpenManage Mobile | ||
| Integrations and Connections |
BMC Truesight Microsoft System Center OpenManage Integrations Red Hat Ansible Modules VMware vCenter and vRealize Operations Manager
|
IBM Tivoli Netcool/OMNIbus IBM Tivoli Network Manager IP Edition Micro Focus Operations Manager OpenManage Connections Nagios Core Nagios XI
|
|
| Security |
Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
|
||
| Embedded NIC | 2 x 1 GbE LOM | ||
| Network Options | 1 x OCP 3.0 | ||
| GPU Options | Not supported | ||
| Ports | Front Ports
1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA
|

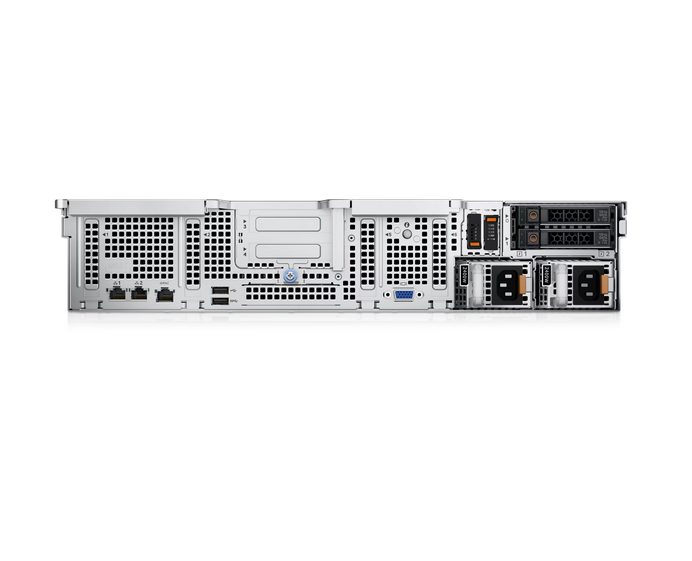

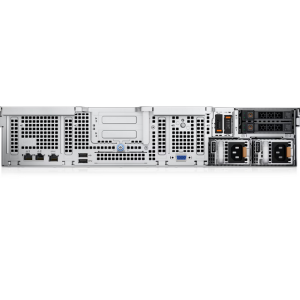

Rear Ports
1 x USB 2.0 1 x Serial (optional) 1 x USB 3.0 2 x Ethernet 1 x VGA
|
|
| Internal Ports
1 x USB 3.0 (optional)
|
|||
| PCIe | Up to 5 x PCIe Gen4 slots + 1 x PCIe Gen3 slots
3 x16 Gen4 low profile 2 x16 Gen4 low profile (optional) 1 x8 Gen3 (x4 lane) low profile
|
||
ICT Equipment, Servers
WhatsApp

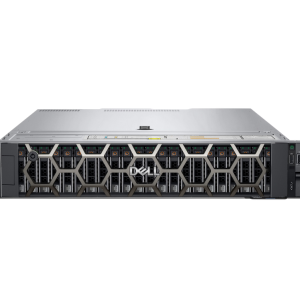

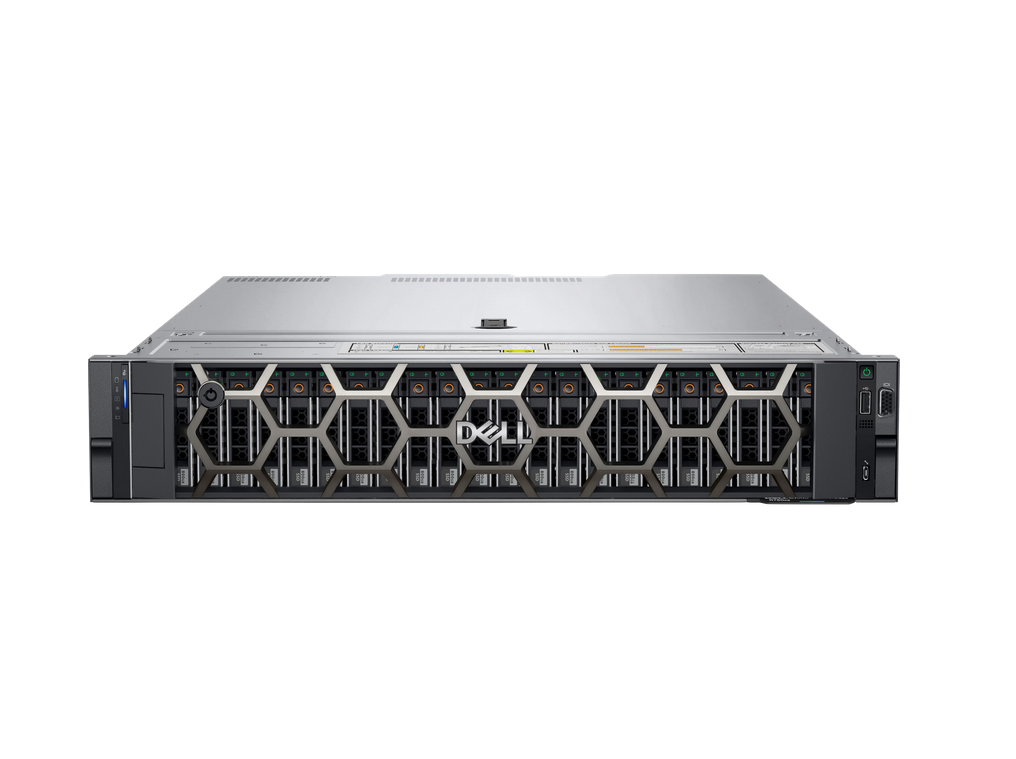

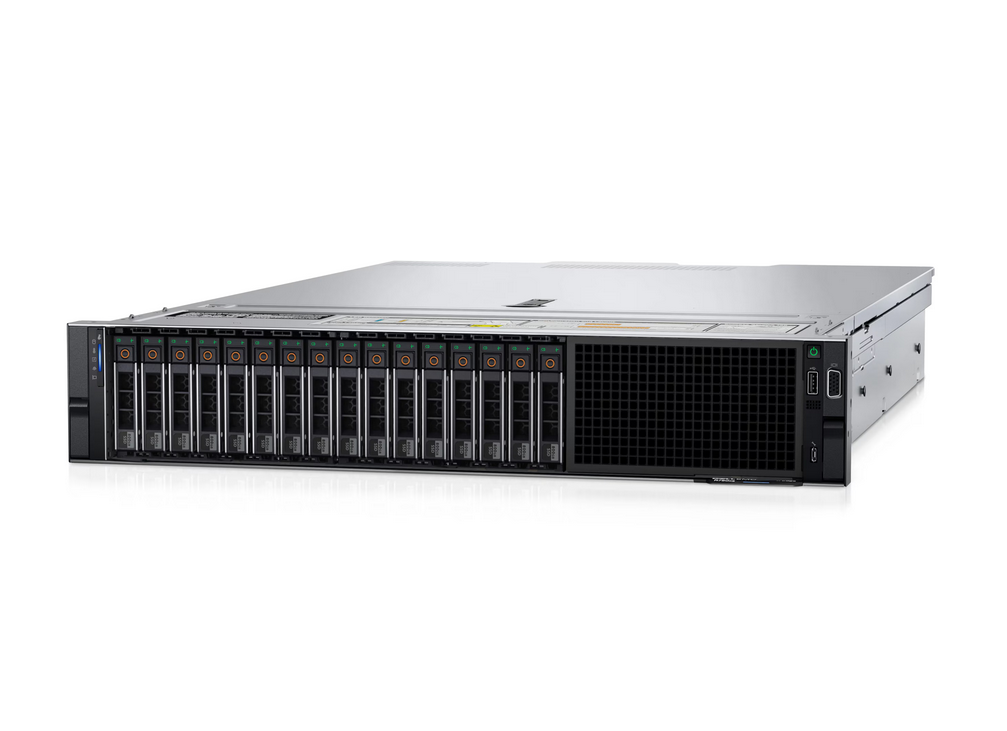

PowerEdge R750XS Rack Server
Purpose-built 2U for growing scale-out solutions
Performance and flexibility. Designed for dense data center computing, medium VM density or VDI, and software-defined use cases.
